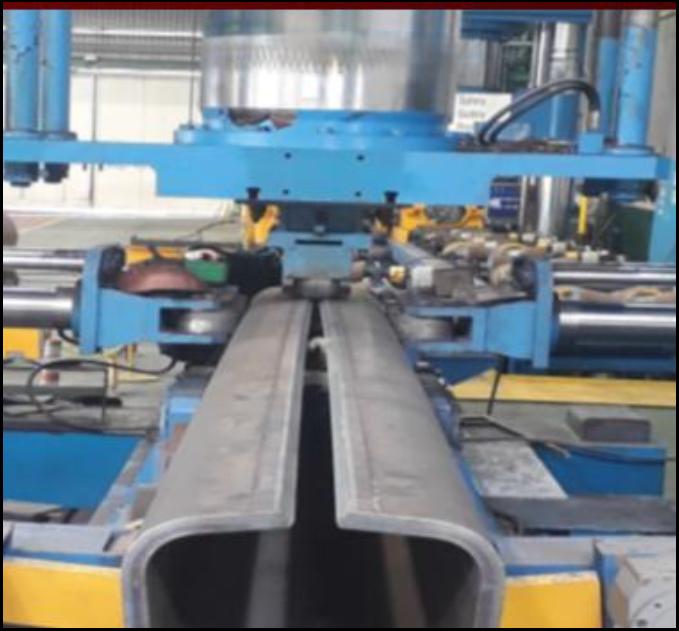

 2.0 structural square tube heavy duty mACHINERY—single lsaw weld:

BASIC SPECIFICATION:

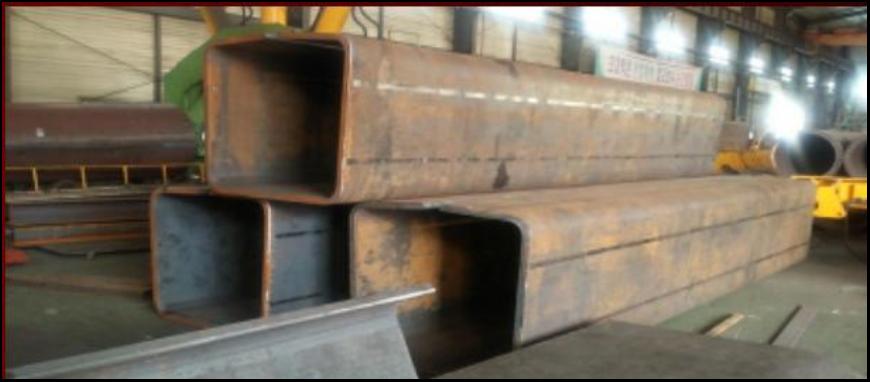

production Pipe:



Size:                                   350mm ~ □1,000mm

Length:                             Min. 6,000mm ~ Max.12,000mm

Thickness:                       Min. 6mm ~ Max.40mm

Productivity:                  5 pieces (□550 x 25.4mm x 12m)

Weight:                              Max. 15 ton/piece

Material Grade:                SM490, Mild steel



Utility Conditions:

Outside Temperature:        -15°c~ 40°c

Humidity:                                  Max. 30 ~ 80%(Non-condensing)



Electricity:

Frequency:                      50Hz

AC Drive:                           AC415V x 3Phase ±10%

Control:                             AC220V x Single phase ±5% & DC24V



Supply Air Condition:



Pressure:                                   4.5 ~ 7.0bar at T.O.P



Supply Water Condition:



Operating Pressure:            3.0 ~ 6.0bar at T.O.P

Supply Temperature:           Lower than 25°c
