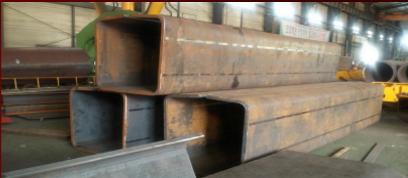

2.0 structural square tube heavy duty mACHINERY—single lsaw weld:



BASIC SPECIFICATION:

production Pipe:



Size:                                           350mm ~ □1,000mm

Length:                                      Min. 6,000mm ~ Max.12,000mm

Thickness:                                Min. 6mm ~ Max.40mm

Productivity:                              5 pieces (□550 x 25.4mm x 12m)

Weight:                                      Max. 15 ton/piece

Material Grade:                       SM490, Mild steel



Utility Conditions:

Outside Temperature:          -15°c~ 40°c

Humidity:                                   Max. 30 ~ 80%(Non-condensing)



Electricity:

Frequency:                               50Hz

AC Drive:                                  AC415V x 3Phase ±10%

Control:                                     AC220V x Single phase ±5% & DC24V



Supply Air Condition:



Pressure:                                  4.5 ~ 7.0bar at T.O.P



Supply Water Condition:



Operating Pressure:               3.0 ~ 6.0bar at T.O.P

Supply Temperature:            Lower than 25°c
