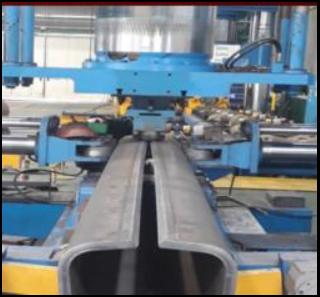

 2.0 structural square tube heavy duty mACHINERY—single lsaw weld:

BASIC SPECIFICATION:

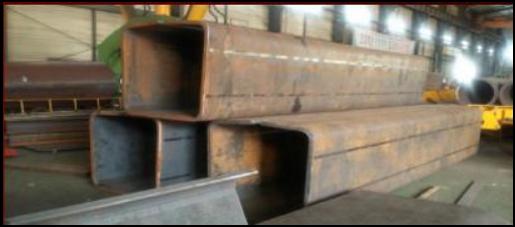

production Pipe:



Size:                                   350mm ~ □1,000mm

Length:                             Min. 6,000mm ~ Max.12,000mm

Thickness:                                 Min. 6mm ~ Max.40mm

Productivity:                              5 pieces (□550 x 25.4mm x 12m)

Weight:                             Max. 15 ton/piece

Material Grade:              SM490, Mild steel



Utility Conditions:

Outside Temperature:           -15°c~ 40°c

Humidity:                         Max. 30 ~ 80%(Non-condensing)



Electricity:

Frequency:                                50Hz

AC Drive:                          AC415V x 3Phase ±10%

Control:                            AC220V x Single phase ±5% & DC24V



Supply Air Condition:



Pressure:                         4.5 ~ 7.0bar at T.O.P



Supply Water Condition:



Operating Pressure:               3.0 ~ 6.0bar at T.O.P

Supply Temperature:   Lower than 25°c
